Revolutionising Land Mapping with Drones: A Comprehensive Guide to Cut and Fill Measurements


In recent years, drone technology has become an invaluable asset in various industries, with land mapping being one of its most significant applications. Drones, also known as Unmanned Aerial Vehicles (UAVs), have transformed the way land mapping is conducted by providing faster, safer, and more accurate data collection methods. This has proven particularly beneficial for construction and land development projects, where precise and efficient mapping is critical.

One of the key aspects of construction and land development projects is the determination of cut and fill measurements. Cut and fill refers to the process of excavating, or "cutting," material from higher elevation areas and using it to fill in lower elevation areas, effectively levelling the ground for development. Accurate cut and fill measurements are essential for project planning, cost estimation, and ensuring that the earthwork is balanced, which minimizes the need for importing or exporting materials. By utilizing drones for land mapping, professionals can achieve a higher level of accuracy in cut and fill calculations, leading to more efficient and sustainable projects.

What is Cut and Fill?

Cut and fill is a common term used in the context of land development and construction projects. It refers to the process of levelling uneven terrain by excavating (cutting) material from areas with higher elevation and depositing it (filling) in areas with lower elevation. This process is essential for creating stable and level foundations for buildings, roads, and other infrastructure. The cut and fill process is often depicted using contour lines on topographic maps, which show the differences in elevation before and after the earthwork has been completed.

The primary purpose of cut and fill measurements is to accurately determine the volume of material that needs to be excavated and filled to achieve the desired level of the terrain. These measurements play a crucial role in several aspects of project planning and execution:

  1. Balancing Earthwork: An ideal cut and fill scenario is one where the amount of material excavated (cut) is equal to the amount of material needed for filling. This balance minimizes the need to import or export materials, resulting in reduced costs and environmental impact.

  2. Minimizing Cost: Accurate cut and fill measurements allow project managers to estimate the cost of earthmoving operations more precisely. This enables better budgeting and resource allocation, as well as the identification of potential cost-saving opportunities.

  3. Reducing Environmental Impact: Proper cut and fill calculations help minimize the amount of earthwork required, which in turn reduces the environmental impact of the project. This includes factors such as soil erosion, loss of vegetation, and disturbance to local ecosystems.

Overall, cut and fill measurements play a critical role in ensuring that land development projects are executed efficiently, cost-effectively, and with minimal environmental impact.

How Drones are Revolutionising Land Mapping

Traditional land mapping methods typically involve ground-based surveying techniques, such as using tape measures, theodolites, and total stations, or aerial methods like manned aircraft and satellite imagery. These conventional techniques have certain limitations, including:

  1. Time-consuming: Ground-based surveying can be a slow process, requiring a significant amount of time to cover large areas accurately.
  2. Labour-intensive: Manual surveying often involves a large team of surveyors working together, which can be costly and logistically challenging.
  3. Limited access: Some terrains may be difficult or dangerous to access, making it challenging to collect accurate data.
  4. Lower resolution: Manned aircraft and satellite imagery may not provide the high-resolution data needed for precise cut and fill calculations.

Drones have revolutionized land mapping by offering several key benefits over traditional methods:

  1. Increased accuracy: Drones equipped with high-resolution cameras and sensors can capture detailed images and data from various angles, resulting in more accurate digital elevation models (DEMs) and orthophotos.
  2. Time efficiency: Drones can cover large areas quickly, significantly reducing the time required for land mapping.
  3. Safety: Drones eliminate the need for surveyors to access hazardous or hard-to-reach locations, improving overall safety.
  4. Cost-effectiveness: By reducing the time and lobar required for land mapping, drones can offer substantial cost savings over traditional methods.

There are several types of drones and sensors commonly used in land mapping, including:

  1. Fixed-wing drones: These drones resemble small airplanes and are known for their long flight times and ability to cover large areas efficiently. They are well-suited for land mapping projects that require high-resolution imagery and data collection over vast regions.
  2. Multirotor drones: Multirotor drones, such as quadcopters, offer increased manoeuvrability and stability, making them ideal for capturing high-resolution data in smaller areas or locations with obstacles.
  3. Sensors: Various sensors can be mounted on drones to capture different types of data, such as high-resolution cameras for aerial photography, LiDAR (Light Detection and Ranging) for generating detailed 3D models, and multispectral sensors for analysing vegetation and soil health.

By overcoming the limitations of traditional land mapping methods and offering increased accuracy, efficiency, and safety, drones have become an invaluable tool for land development and construction projects.

The Process of Mapping Land with Drones

The drone-based land mapping process can be broken down into three main steps:

  1. Flight planning: Before deploying the drone, a flight plan must be created to ensure optimal data capture. This includes defining the area of interest, setting the flight altitude, and determining the appropriate overlap between images. Flight planning software can be used to automate the process and create a grid of waypoints for the drone to follow.
  2. Data capture: During the data capture phase, the drone flies along the pre-defined flight path, capturing images and sensor data at regular intervals. To ensure high-quality data, it is essential to maintain a consistent altitude, speed, and overlap between images.
  3. Data processing: After the drone has captured the necessary data, it must be processed and analysed. This typically involves using specialized software to stitch together overlapping images, creating a high-resolution orthophoto and generating a digital elevation model (DEM) that accurately represents the terrain.

High-resolution orthophotos and digital elevation models (DEMs) are generated from drone data using the following steps:

  1. Image alignment: Overlapping images are aligned to create a seamless mosaic, accounting for differences in perspective, scale, and orientation. This process, called image registration, ensures that each image is accurately positioned relative to the others.
  2. Orthorectification: To correct for distortions caused by terrain and camera perspective, each image is "orthorectified" by projecting it onto a DEM. This results in an orthophoto, a georeferenced aerial image with uniform scale and no distortion.
  3. DEM generation: A DEM is created by extracting elevation data from the images using photogrammetric techniques, such as stereophotogrammetry or structure-from-motion (SfM). These methods involve analysing the parallax between overlapping images to calculate the distance and elevation of each point in the scene.

Legal and regulatory considerations for drone mapping include:

  1. Permission: Depending on the location and purpose of the drone flight, permits may be required from local authorities. It is essential to check the specific regulations in the area where the mapping will take place.
  2. Airspace restrictions: Drones must adhere to airspace restrictions, which may include altitude limits, no-fly zones, and temporary flight restrictions.
  3. Pilot certification: In most situations, drone pilots are required to hold a specific certification to operate drones for these purposes.

By understanding and adhering to the legal and regulatory requirements, drone operators can ensure that their land mapping projects are carried out safely and responsibly.

Calculating Cut and Fill Volumes using Drone Data

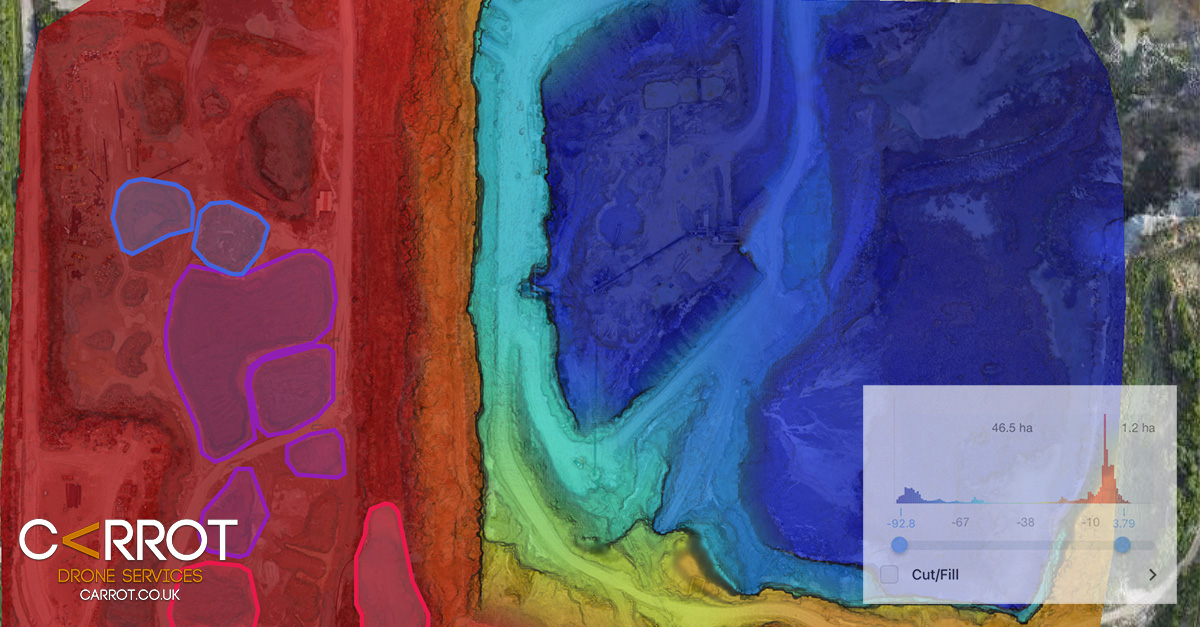

Digital Elevation Models (DEMs) are used to calculate cut and fill volumes by comparing the existing terrain to the desired final terrain. The difference in elevation between the two surfaces represents the amount of material that needs to be cut or filled at each location. By calculating the volume of these differences across the entire area of interest, project managers can accurately estimate the total cut and fill volumes required for the project.

Performing cut and fill calculations using GIS software or specialised earthwork calculation software typically involves the following steps:

  1. Import the existing terrain data: Load the DEM representing the existing terrain into the GIS or earthwork calculation software. This can be in the form of a raster or a TIN (Triangulated Irregular Network).
  2. Create the desired final terrain: Develop a model of the desired final terrain, either by modifying the existing DEM or creating a new surface based on design specifications, such as grading plans or engineered drawings.
  3. Calculate the difference between the two surfaces: Use the software tools to compute the difference in elevation between the existing and final terrain at each point on the surface. Positive differences represent cut areas, while negative differences represent fill areas.
  4. Compute cut and fill volumes: Calculate the volume of material to be cut or filled by integrating the elevation differences across the entire area of interest. The software will typically provide tools to perform this calculation automatically, outputting the total cut and fill volumes, as well as a visual representation of the cut and fill areas.
  5. Adjust and optimize the design: If necessary, modify the final terrain design to minimize cut and fill volumes, reduce costs, or address other project requirements. Iterate through the calculation process until an optimal design is reached.

Examples and case studies demonstrating the accuracy and efficiency of using drone data for cut and fill calculations:

  1. A residential development project in a hilly area used drone data to create a high-resolution DEM of the existing terrain. By comparing this with the planned final terrain, the project team was able to optimise the earthwork, resulting in a 15% reduction in cut and fill volumes and significant cost savings.
  2. A motorway construction project used drone-based land mapping to calculate cut and fill volumes along a proposed route. The drone data allowed for more accurate calculations than traditional surveying methods, leading to a more efficient design that minimized the need for imported fill material.
  3. A large-scale solar farm project employed drones to map the site and generate a detailed DEM. Using this data, engineers calculated cut and fill volumes and optimised the site design to minimize earthwork, reduce costs, and decrease the project's environmental impact.

These examples highlight the potential for drone data to enhance the accuracy and efficiency of cut and fill calculations, ultimately leading to more sustainable and cost-effective land development projects.

Tips for Optimising Drone-based Cut and Fill Measurements

Selecting the right drone and sensor for the job:

  1. Consider the size and complexity of the project: For large-scale projects with vast areas, fixed-wing drones are more suitable due to their longer flight times and ability to cover more ground. For smaller projects or areas with obstacles, multirotor drones offer increased manoeuvrability and stability.
  2. Evaluate sensor requirements: Choose a high-resolution camera that can capture the necessary level of detail for accurate cut and fill calculations. For more complex projects or challenging terrain, consider using LiDAR sensors to generate highly detailed 3D models.
  3. Assess payload capacity and battery life: Ensure that the drone can carry the required sensors and has sufficient battery life to complete the mapping mission without interruptions.

Best practices for flight planning and data collection:

  1. Choose the appropriate flight altitude: Higher altitudes result in a larger area covered per image but lower resolution. Select an altitude that balances coverage with the required resolution for accurate cut and fill calculations.
  2. Optimise image overlap: Ensure a sufficient overlap between images (typically 70-80% for the forward overlap and 65-75% for the side overlap) to provide adequate coverage and redundancy for processing.
  3. Plan for consistent lighting: Schedule flights during times with consistent lighting conditions (e.g. mid-morning or mid-afternoon) to minimize shadows and variations in image brightness.
  4. Use Ground Control Points (GCPs) or Real-Time Kinematic (RTK) technology: To improve the geolocation accuracy of the resulting orthophotos and DEMs, use GCPs or RTK-enabled drones for more precise positioning.

Tips on processing and analysing drone data for cut and fill calculations:

  1. Use specialised software: Select software specifically designed for processing drone data, such as Pix4D, Agisoft Metashape, or DroneDeploy. These tools can streamline the processing of images and sensor data to create accurate orthophotos and DEMs.
  2. Ensure data quality: Before processing, inspect the raw data for issues such as blurry images, inconsistent lighting, or missing coverage. Address these issues by re-flying the area or adjusting the data processing settings.
  3. Optimise DEM generation: When creating the DEM, experiment with different settings and algorithms to find the optimal balance between accuracy and processing time.
  4. Validate and cross-check results: Compare the results of the cut and fill calculations with any available ground-based survey data or other sources of information to ensure the accuracy of the drone-derived measurements.

By following these tips, you can optimize the accuracy and reliability of drone-based cut and fill measurements, leading to more efficient and cost-effective land development projects.


In this blog post, we discussed the importance of cut and fill measurements in land development projects and how drones are revolutionizing the process of land mapping. We explained what cut and fill is, and how it plays a crucial role in balancing earthwork and minimizing costs. We also covered the benefits of using drones for land mapping, such as increased accuracy, time efficiency, and safety, and explored the types of drones and sensors commonly used in the industry.

Drones offer numerous advantages over traditional land mapping methods, enabling the creation of high-resolution orthophotos and digital elevation models (DEMs) that can significantly improve the accuracy of cut and fill calculations. By leveraging drone technology, project managers can optimize earthwork operations, reduce costs, and minimize the environmental impact of their projects.

As drone technology continues to advance, its potential applications in land development and construction projects are becoming increasingly apparent. We encourage readers to consider implementing drone-based land mapping and cut and fill measurement techniques in their projects to reap the benefits of increased efficiency, cost savings, and enhanced environmental stewardship.
