Revolutionising Topographical Maps: The Power of Drones


Topographical maps have long been an essential tool for professionals in fields such as geology, environmental studies, urban planning, and agriculture. These maps represent the Earth's surface, displaying elevation changes and natural features, allowing for informed decision-making in various projects. In recent years, drones have emerged as a ground breaking technology for creating topographical maps, offering several advantages over traditional methods. This blog post will provide an overview of topographical maps, delve into the benefits of using drones for mapping, explain the process of creating these maps with drones, and showcase real-life applications of drone-created topographical maps. Join us as we explore the fascinating world of drone-assisted topographical mapping and its promising future.

Understanding Topographical Maps

Definition of topographical maps

Topographical maps are detailed, graphical representations of the Earth's surface, showcasing natural and artificial features like elevation changes, contours, water bodies, and structures. These maps employ contour lines to indicate elevation and terrain, helping users visualise the landscape's three-dimensional aspects on a two-dimensional surface.

Importance of topographical maps in various industries

  1. Geology Topographical maps provide crucial information for geologists to study landforms, rock formations, and geological structures. They also aid in understanding erosion, sedimentation, and other Earth processes, which is vital for resource exploration and natural disaster management.

  2. Environmental studies In environmental studies, topographical maps are essential for assessing the impact of human activities on ecosystems, identifying sensitive habitats, and monitoring changes in land use over time. They also play a critical role in the planning and execution of conservation projects.

  3. Urban planning Urban planners rely on topographical maps to make informed decisions about land use, transportation networks, and infrastructure development. These maps enable them to analyse the terrain and identify suitable locations for construction projects, ensuring the optimal use of resources and minimizing environmental impact.

  4. Agriculture Topographical maps assist farmers in understanding their land's characteristics, such as slope, drainage patterns, and soil types. This information helps in making informed decisions about crop selection, irrigation systems, and land management practices, ultimately increasing agricultural productivity and sustainability.

Conventional methods of creating topographical maps

  1. Aerial photography Aerial photography, which involves capturing images of the Earth's surface from aircraft or balloons, has traditionally been used to create topographical maps. These images are processed using photogrammetry techniques to extract elevation data and generate contour lines.

  2. Satellite imagery Satellite imagery involves capturing images of the Earth's surface using remote sensing satellites. This method provides broad coverage and infrequent updates and may suffer from lower resolution and accuracy compared to other methods.

  3. Ground surveys Ground surveys involve collecting elevation data through field measurements, such as levelling or GPS surveying. While accurate, this method can be time-consuming, labour-intensive, and challenging to conduct in hard-to-reach or remote areas.

Drones: A Game-Changer in Topographical Mapping

Introduce drones as a new technology in topographical mapping Drones, also known as unmanned aerial vehicles (UAVs), have emerged as a cutting-edge technology in topographical mapping. Equipped with high-resolution cameras and advanced sensors, drones have revolutionised the way topographical maps are created, offering numerous advantages over traditional mapping methods.

Advantages of using drones over conventional methods

  1. Increased accuracy and resolution Drones can capture high-resolution images and accurate elevation data, leading to more detailed and precise topographical maps. This increased accuracy helps professionals make better-informed decisions in their respective fields.

  2. Faster data acquisition Drones can cover large areas quickly and efficiently, significantly reducing the time required for data collection. This accelerated process enables more frequent updates and allows for real-time monitoring of changes in the landscape.

  3. Cost-effective Using drones for topographical mapping can be more cost-effective than traditional methods, as they require fewer resources and personnel. Additionally, the reduced data acquisition time can result in significant cost savings.

  4. Access to hard-to-reach areas Drones can easily access remote or challenging locations, such as steep slopes, dense forests, or hazardous environments, where conventional mapping methods might be impractical or risky.

Types of drones used in topographical mapping

  1. Fixed-wing drones Fixed-wing drones are designed for long-range flights and can cover large areas in a single mission. These drones are well-suited for topographical mapping projects that require extensive coverage, as they offer longer flight times and higher speeds compared to multi-rotor drones.

  2. Multi-rotor drones Multi-rotor drones, such as quadcopters and hexacopters, are known for their agility, stability, and ease of use. These drones can hover in place, allowing them to capture high-resolution images even in challenging environments. Multi-rotor drones are ideal for smaller-scale topographical mapping projects or those that require more intricate manoeuvring.

The Process of Creating Topographical Maps with Drones

Planning the drone mission

  1. Defining the area of interest The first step in creating topographical maps with drones is to define the area of interest (AOI). This involves identifying the boundaries of the area that needs to be mapped and establishing any specific requirements or constraints related to the project.

  2. Choosing the right drone and sensors Based on the project's scope and requirements, it is essential to select the appropriate drone and sensors. Factors to consider include flight time, payload capacity, image resolution, and the type of terrain to be mapped.

  3. Establishing ground control points Ground control points (GCPs) are essential for ensuring the accuracy of the final topographical map. These are marked locations on the ground with known coordinates, which are used to georeference and correct the drone's imagery during data processing.

Data collection

  1. Flying the drone and capturing images Once the planning phase is complete, the drone is flown over the AOI, capturing images with the onboard camera or sensors. The drone follows a predetermined flight path, ensuring that the entire area is covered systematically.

  2. Ensuring optimal image overlap To create an accurate topographical map, it is crucial to ensure sufficient image overlap between adjacent images. This overlap allows the photogrammetry software to identify common features in the images and generate precise elevation data.

Data processing and map creation

  1. Photogrammetry software After the drone has captured the images, they are imported into a photogrammetry software program. The software processes the images, using the overlap and GCPs to generate accurate elevation data and create a three-dimensional point cloud.

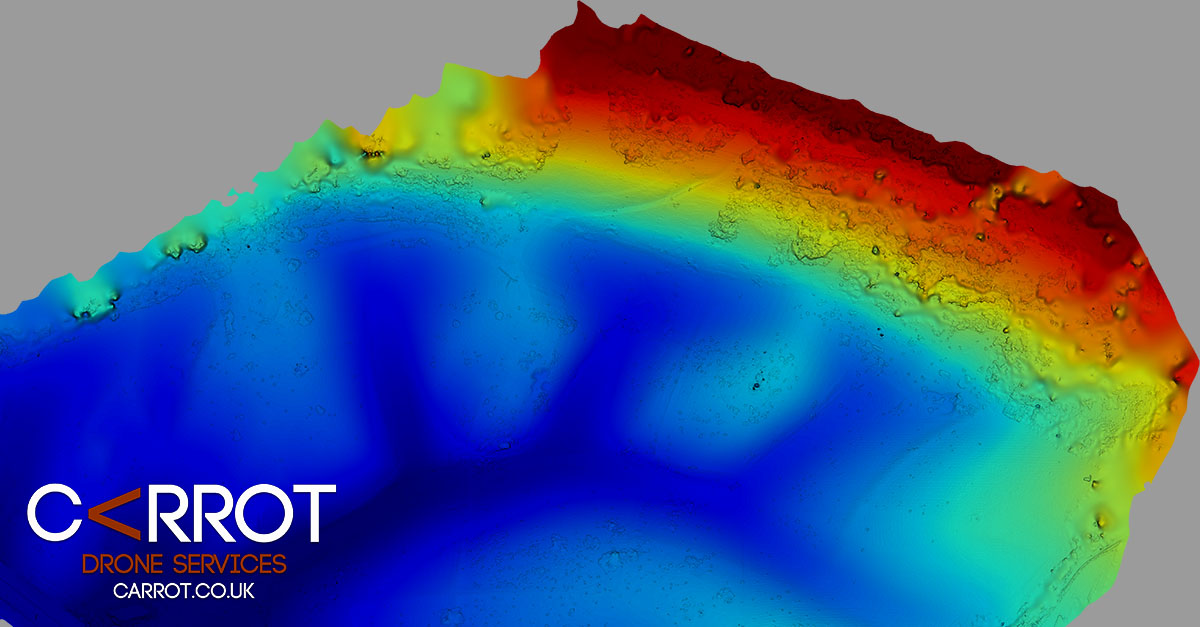

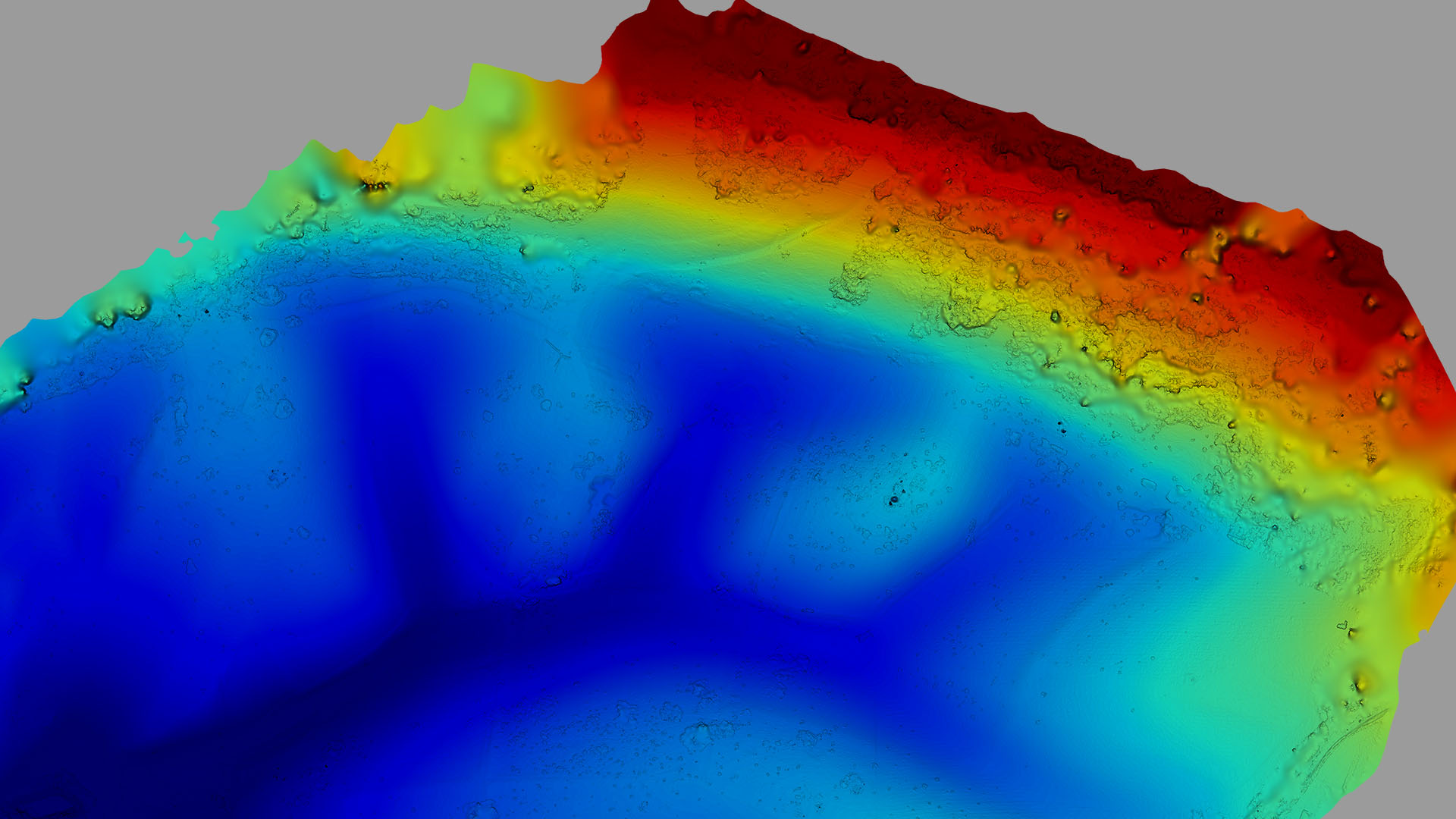

  2. Creating a digital elevation model (DEM) The point cloud is then used to create a digital elevation model (DEM), which represents the Earth's surface without any natural or artificial features. The DEM is a critical component in generating a topographical map, as it provides the necessary elevation data.

  3. Generating contour lines and topographical maps With the DEM in place, contour lines can be generated to represent changes in elevation. These lines are then combined with other features, such as water bodies and structures, to create the final topographical map. This map can be used for various applications in geology, environmental studies, urban planning, and agriculture.

Real-Life Applications of Drone-Created Topographical Maps

Case studies of successful projects

  1. Flood risk assessment Drones have been used to create topographical maps for flood risk assessment in various regions. By mapping the elevation changes and terrain features, authorities can identify areas prone to flooding and develop appropriate mitigation measures. For example, in a coastal community, drone-created topographical maps have been used to assess the impact of sea-level rise and storm surges, leading to the implementation of improved coastal defence systems.

  2. Landslide monitoring In areas susceptible to landslides, drone-created topographical maps can be invaluable for monitoring changes in the landscape and identifying potential risks. For instance, in a mountainous region prone to landslides, local authorities used drone-generated maps to track soil movement and slope stability. This data helped them establish early warning systems and develop effective landslide mitigation strategies.

  3. Construction site planning Topographical maps created by drones can be instrumental in the planning and development of construction sites. In one case, a construction company used drone-generated maps to evaluate the terrain, drainage patterns, and soil conditions of a potential building site. This information allowed them to optimise the site layout, minimise environmental impact, and reduce construction costs.

  4. Agricultural land management Farmers and agricultural organisations have also benefited from drone-created topographical maps. In one example, a large-scale farming operation used drone-generated maps to analyse their land's elevation, slope, and drainage patterns. This information allowed them to implement precision agriculture techniques, optimise irrigation systems, and improve overall crop yield and sustainability.


In summary, drones have transformed the field of topographical mapping by offering increased accuracy, faster data acquisition, cost-effectiveness, and access to hard-to-reach areas. The use of drones for creating topographical maps has positively impacted various industries, such as geology, environmental studies, urban planning, and agriculture, by providing them with valuable data for informed decision-making.

As drone technology continues to advance, we can expect even greater innovations and applications in topographical mapping. Future developments may include improved sensors, enhanced data processing techniques, and increased integration with other geospatial technologies. This progress will undoubtedly lead to more accurate, efficient, and versatile topographical mapping solutions.

We encourage readers to explore the possibilities of drone technology in their own industries and consider how these cutting-edge tools can revolutionise their approach to topographical mapping. Embracing drone-assisted topographical mapping can lead to more informed decision-making, streamlined operations, and sustainable practices across various sectors.
