Read Time 10 mins
Drone mapping refers to the process of using Unmanned Aerial Systems (UASs), also known as drones, to create high-resolution maps, 3D models and other geographic data. The drones are equipped with cameras and sensors that capture images and data from different angles and heights, which are then processed using specialised software to create accurate maps and models.
Drone mapping is becoming increasingly popular because of its many benefits. Here are some of the key benefits of drone mapping:
Drone mapping is more cost-effective than traditional mapping methods because it requires fewer resources and can be done more quickly.
Drones can cover large areas quickly and easily, making it possible to create detailed maps and models in a fraction of the time it would take using traditional methods. Drones are also able to map areas of land that would be otherwise inaccessible. This makes drone mapping a valuable tool for land surveyors and other professionals who need to quickly gather highly accurate data.
Drones can capture highly detailed images and data from a variety of angles and heights, which can then be processed to create highly accurate maps and models. This makes drone mapping a valuable tool for industries such as agriculture, construction and environmental monitoring, where accurate data is critical.
Drone mapping can help to reduce the risk of accidents and injuries by allowing professionals to gather data from a safe distance. This is particularly important in industries such as construction and mining, where workers are often exposed to hazardous conditions. Drone mapping is a valuable tool that can help organisations to gather accurate data quickly, efficiently and cost-effectively. As technology continues to evolve, it is likely that drone mapping will become even more widely used across a range of industries.
Types of drones used for mapping
There are several types of drones used for mapping, including fixed-wing, multi-rotor and hybrid drones. Each type has its own advantages and disadvantages, depending on the specific requirements of the mapping project.
Here's a brief overview of each type:
Fixed-wing drones are similar in shape and design to traditional airplanes, with a fixed set of wings and a single motor. They are typically larger than multi-rotor drones and can cover larger areas more quickly. Fixed-wing drones are also more stable in windy conditions and can stay aloft for longer periods of time, making them ideal for large-scale mapping projects. However, they are more complex to operate than multi-rotor drones and require a larger take-off and landing area.
Multi-rotor drones are the most common type of drone used for mapping. They have multiple rotors, usually four to eight, that allow them to take off and land vertically and hover in place. They are smaller and more agile than fixed-wing drones, making them ideal for smaller mapping projects or projects that require more precise data. They are also easier to operate and require less space for take-off and landing. However, they have shorter battery life and are more susceptible to wind and other environmental factors.
Hybrid drones are a combination of fixed-wing and multi-rotor drones, offering the advantages of both types. They can take off and land vertically like a multi-rotor drone but can also fly like a fixed-wing drone, covering larger areas more quickly. Hybrid drones are more versatile than either fixed-wing or multi-rotor drones, but they are also more complex to operate and require more advanced piloting skills.
The choice of drone type depends on the specific requirements of the mapping project. Fixed-wing drones are ideal for large-scale projects that require high coverage and stability, while multi-rotor drones are better suited for smaller projects that require more precision and manoeuvrability. Hybrid drones offer the advantages of both types but are more complex to operate.
Drone mapping applications
Drone mapping has numerous applications across a range of industries, including surveying, agriculture, construction and environmental monitoring. Here are some of the key applications of drone mapping and the benefits of using it in each industry:
Drone mapping is commonly used for land surveying, as it allows surveyors to quickly and accurately gather topographical data, create detailed maps and measure distances and elevations. The benefits of using drone mapping in surveying include increased accuracy, faster data collection and improved safety, as drones can access hard-to-reach areas that might be dangerous for surveyors to access on foot.
Drone mapping is becoming increasingly popular in agriculture, as it allows farmers to gather data on crop health, soil moisture levels and other factors that can affect crop yields. This data can be used to make more informed decisions about irrigation, fertilisation and other aspects of crop management, ultimately leading to higher yields and better profitability. The benefits of using drone mapping in agriculture include increased efficiency, improved yields and reduced costs.
Drone mapping is also used in construction to gather data on construction sites, create 3D models and monitor progress. This data can be used to identify potential safety hazards, monitor construction schedules and make more informed decisions about resource allocation. The benefits of using drone mapping in construction include increased safety, faster data collection and improved accuracy.
Drone mapping is also used for environmental monitoring, such as mapping and monitoring forests, rivers and oceans. This data can be used to track changes in ecosystems over time, monitor wildlife populations and identify areas that require conservation efforts. The benefits of using drone mapping in environmental monitoring include increased efficiency, improved accuracy and reduced costs.
Drone mapping has numerous applications across a range of industries, offering benefits such as increased accuracy, faster data collection, improved safety and reduced costs. As technology continues to advance, it is likely that drone mapping will become even more widely used in a range of applications.
Planning a drone mapping mission
Planning a drone mapping mission involves several steps to ensure a successful outcome.
Here are the key steps involved in planning a drone mapping mission:
Determine the objective of the mission
We work closely with our clients to determine the objective of the mission. This will help us select the right drone, camera and flight path for the project.
Select the right drone
Once we have determined the objective of the mission, we need to select the right drone. We will consider factors such as flight time, payload capacity and flight range to ensure that the drone we choose can handle the specific requirements of your project.
Choose the right camera
The next step is to choose the right camera. We consider factors such as resolution, sensor size and focal length to ensure that the camera we choose can capture the specific details and data that you need for your project.
Determine the flight path
Once we have selected the right drone and camera, we need to determine the flight path. This involves determining the altitude, speed and direction of the drone to ensure that it captures the data and accuracy that you need
Check the weather
We will check the weather conditions for the day of the mapping mission to ensure that they are suitable for flying. We will avoid flying in high winds, rain or other adverse weather conditions that could affect the safety and accuracy of the mission.
Obtain necessary permissions
Depending on where we are flying our drone, we may need to obtain necessary permission to fly the in the airspace and permission for take off and landing from the landowner.
Create a safety plan
We will conduct a site survey to identify any potential hazards or obstacles that could affect the mission. Then we will create a safety plan to ensure that the drone mapping mission is safe and free from accidents. This will include safety procedures, emergency response plans and any other safety measures that we need to put in place to protect ourselves and others. By following these steps and tips we can plan and execute a successful drone mapping mission that delivers accurate and valuable data.
Capturing drone mapping data
Capturing drone mapping data involves several steps, including setting up the drone, calibrating the camera, and flying the drone along a predetermined flight path.
Here are the steps involved in capturing drone mapping data:
Choosing the right drone
When selecting a drone for mapping we consider factors such as flight time, camera quality, and payload capacity.
Preparing the drone
Before flying the drone we ensure that it is charged and all components are in working order. We check that the GPS signal is strong and that the drone is free from any obstacles that could interfere with its flight.
Calibrating the camera
It's essential to calibrate the camera to ensure accurate and high-quality images. This involves setting the camera's aperture, shutter speed, and ISO settings to the optimal values for the lighting conditions in which we'll be flying.
Setting up the flight plan
We use mapping software to set up the drone's flight plan, including the altitude, speed, and direction, ensuring that the flight path covers the entire area we need to map.
Launching the drone
Once we have completed the pre-flight checks, we launch the drone and let it take off to the desired altitude. Then use the mapping software to begin the pre-programmed flight path.
Monitoring the flight
We keep an eye on the drone during the flight to ensure that it stays on course and doesn't encounter any obstacles. We use the camera feed to check that the images are being captured correctly.
Landing the drone
Once the drone has completed its flight path, we bring it back, either manually or use the software’s “Return to Home” function to the starting point and land it safely.
Now let's discuss the various camera settings and techniques used to capture high-quality images during drone mapping:
The aperture controls the amount of light that enters the camera lens. A smaller aperture will result in a greater depth of field, while a larger aperture will create a shallower depth of field.
The shutter speed controls the amount of time that the camera sensor is exposed to light. A faster shutter speed will capture fast-moving objects, while a slower shutter speed will capture motion blur.
The ISO setting controls the camera sensor's sensitivity to light. Higher ISO values will result in more noise in the image, while lower ISO values will result in less noise.
Adjusting the white balance ensures that the colours in the image are accurate and consistent. This is especially important when mapping vegetation or other features that require accurate colour representation.
Overlap refers to the amount of overlap between consecutive images. A higher overlap will result in more accurate mapping data and better 3D modelling.
Oblique vs. nadir images
Nadir images are captured straight down, while oblique images are captured at an angle. Oblique images can provide more detail and better visualization of features such as buildings or terrain.
HDR imaging involves capturing multiple images at different exposures and combining them to create a single, high-quality image with better contrast and detail.
By using the appropriate camera settings and techniques, you can capture high-quality images during drone mapping and produce accurate and detailed maps and 3D models.
Processing drone mapping data
Processing drone mapping data involves several steps to transform raw image data into a usable 3D model or map. Here is an overview of the process:
Transfer data to a computer
After completing the drone mapping mission, we will need to transfer the raw image data from the drone's memory card to a computer.
Use specialised software to stitch together images
Next, we will use specialised photogrammetry software to stitch together the individual images captured by the drone into a single mosaic image. This process involves identifying common features in each image and using them to align and stitch the images together.
Create a 3D model or map

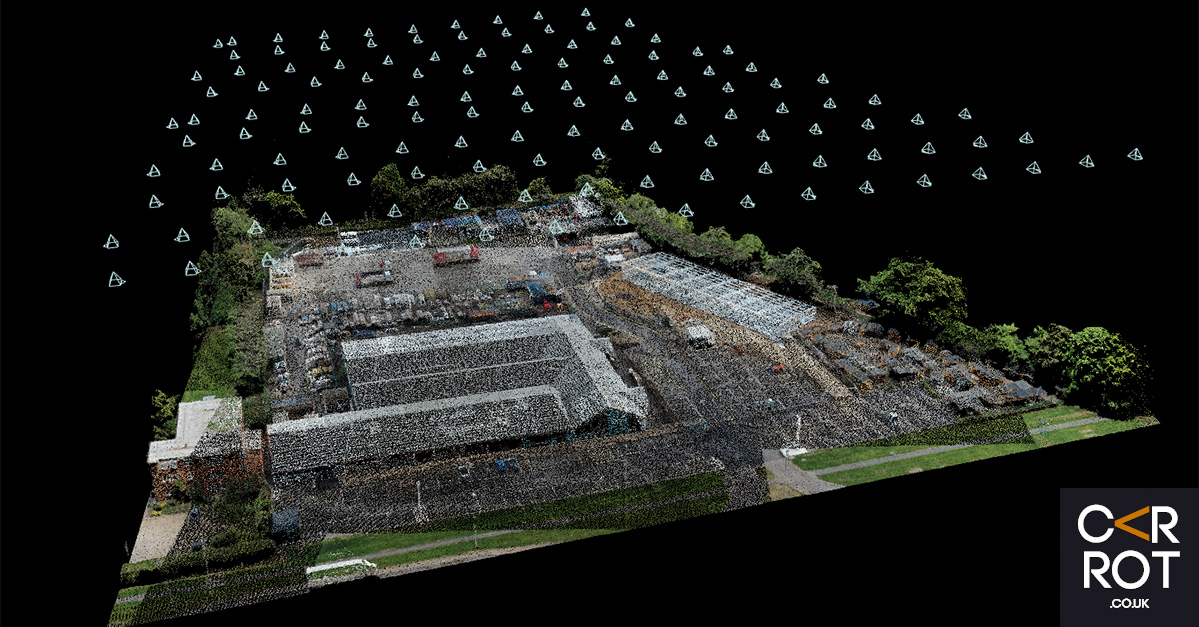

Once we have a single mosaic image we can use specialised software to create a 3D model or map. This involves using algorithms to calculate the position and orientation of each pixel in the image and then using this data to create a 3D representation of the terrain or object.
To ensure accurate data processing:
We will use high-quality software.
The accuracy of the data processing will depend on the quality of the software used. We have invested in reputable photogrammetry software that has been tested and proven to produce accurate results.
We will ensure proper calibration.
Before launching our drone mapping mission we will ensure that our drone and camera are properly calibrated. This involves calibrating the drone's compass, GPS and other sensors to ensure that the data captured during the mission is accurate.
Ground Control Points (GCPs)
Depending in the accuracy of data required we may use ground control points. Ground control points are physical markers placed on the ground that can be used to improve the accuracy of your data. By using ground control points, we can ensure that the 3D model or map we create is properly georeferenced and aligned with real-world coordinates.
We will check data quality.
Before creating a final 3D model or map it's important to check the quality of the data. We will look for any areas where the images may be blurry or where there may be gaps in the data. By identifying and correcting any issues with the data we can ensure that the final model or map is as accurate as possible.
By following these best practices we can ensure that the drone mapping data is processed accurately and that the final 3D model or map is of the highest quality.
Analysing your drone mapping dataAnalysing drone mapping data involves extracting useful information from the 3D model or map and using it to make informed decisions. Here are some steps you can take to analyse drone mapping data:
Identify key featuresStart by identifying key features in the 3D model or map that are relevant to your project or application. For example, if you are analysing drone mapping data for a construction project, you might focus on features such as terrain, vegetation and buildings.
Extract useful informationNext, use specialised software to extract useful information from the 3D model or map. This can include measurements such as distance, area and volume, as well as other data such as elevation, temperature and moisture levels.
Analyse the dataOnce you have extracted useful information from the 3D model or map, you can begin to analyse the data. Look for patterns or trends in the data that can help you make informed decisions about your project or application. For example, you might use the data to identify potential hazards, such as unstable terrain or areas prone to flooding.
Make informed decisionsUse the information you have gathered from the drone mapping data to make informed decisions about your project or application. This might include adjusting the scope of the project, modifying construction plans, or implementing new management strategies.
Identify potential hazardsBy analysing drone mapping data, you can identify potential hazards such as unstable terrain or areas prone to flooding. This information can be used to inform safety protocols and help minimise risk.
Detect changes over timeBy comparing drone mapping data captured at different times, you can detect changes in the terrain, vegetation and other features. This can be particularly useful in applications such as environmental monitoring or agriculture, where changes over time can indicate changes in conditions or productivity.
Improve resource managementBy analysing drone mapping data you can gain insights into the distribution and availability of resources such as water, vegetation and minerals or for building sites stockpiles and equipment. This information can be used to inform resource management strategies and improve efficiency. Analysing drone mapping data can provide valuable insights into a wide range of projects and applications. By extracting useful information from the 3D model or map and using it to make informed decisions, you can improve safety, detect changes over time and improve resource management.
Drone mapping is a rapidly growing field with a wide range of applications across industries such as surveying, agriculture, construction and environmental monitoring. The use of drones for mapping provides a range of benefits, including cost-effectiveness, efficiency and accuracy.
In this blog, we discussed the different types of drones used for mapping and their advantages and disadvantages. We also covered the steps involved in planning a drone mapping mission, processing drone mapping data and analysing the data to make informed decisions. Drone mapping is crucial for a range of industries and can help improve safety, efficiency and resource management. It provides valuable insights into various projects and applications, helping to identify potential hazards, detect changes over time and improve productivity.
